Description
SPECIFICATION
| Brand | Midea |
| Rated Cooling Capacity (btu/hr) | 10,000 |
| NEA Energy Efficiency Rating (Tick) | 5 |
| Condensing Unit (CU) Model | MAS-1S09E |
| CU Weight | 29.9 Kg |
| CU Dimension (WxHxD) (mm) | 805 x 554 x 330 |
| Refrigerant Type | R32 |
| Compressor Type | Inverter |
| Condenser Type | Single-Split |

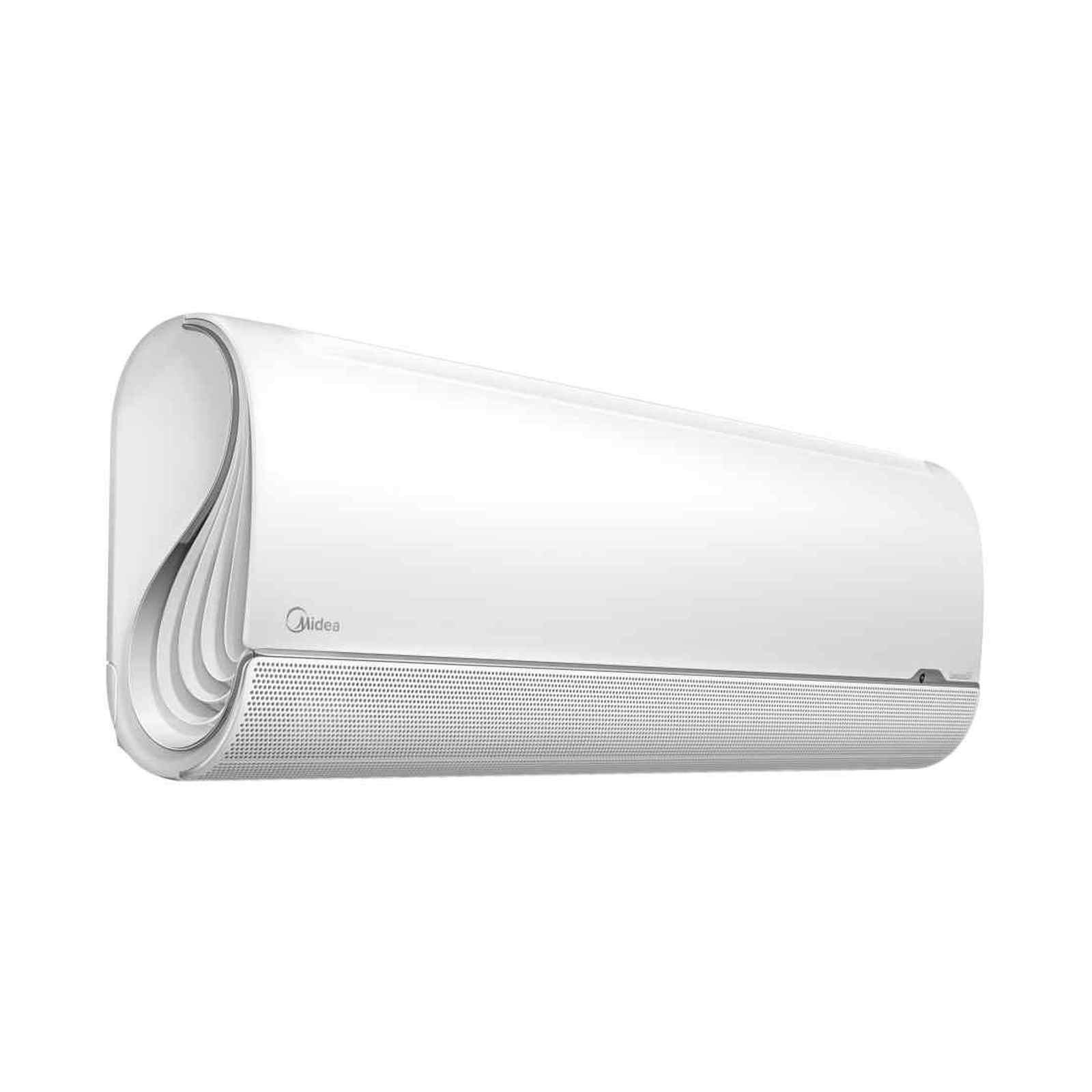

| Fan Coil Unit (FCU) Model | MAS-09E |
| FCU Weight | 10.7 Kg |
| FCU Dimension (WxHxD) (mm) | 940 x 325 x 193 |
| FCU Sound Level (db(A)) | 40 / 35.5 / 28.5 |
| Smart Phone App Control | MideaAIR app |
| Power Supply | 1 phase, 220-230V, 50Hz |
Additional Charges that may be incurred includes:
- Transport fee which will be incurred for additional and/or subsequent installation trips.
- Installation which exceeds standard piping length given, stainless-steel brackets.
- Any other additional works such as cutting & patching of plaster board, false ceiling works, alteration of ceiling pelmet, alteration of ceiling cornice, removal of built-in carpentry, removal of windows, scaffolding services, hoisting services etc.
- Any uncommon circumstances such as concealed piping and cabinet obstruction etc.
- Additional charges may apply for private properties, condos, shophouses & commercial units due to work at height and complications of pipe routing.
- When electrical point has to be installed if existing power point is not compatible with equipment.
